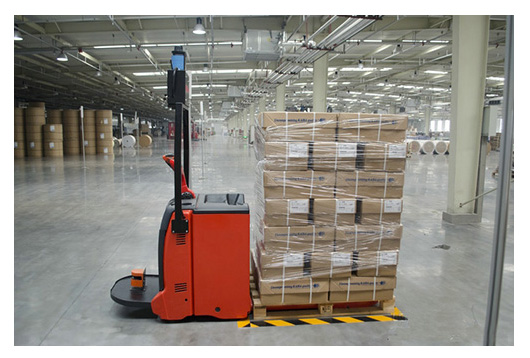

Laser-guided forklift the AGV
DANBACH ROBOT


Introduction to Laser Navigation Forklift AGV

IKV laser guided forklift AGV is currently used in some automotive industries, a large warehouse logistics, some large paper mills, three-dimensional warehouse, to achieve rapid deployment of logistics and transportation automation applications, thereby saving labor costs and improve production efficiency.

Advantages of Laser Navigation AGV

Laser navigation AGV positioning accuracy, the ground without other positioning facilities; driving path can be flexible and can be suitable for a variety of on-site environment, can be modified at any time by software driving route, no magnetic stripe and landmark maintenance more convenient, it is the preferred foreign Advanced guided mode. The equipment bear empty pallets, with a tray, paper and other handling work.

Laser navigation AGV can solve the following problems

1, the need for stacking, loading and unloading materials;
2, the need for frequent replacement of navigation lines;
3, the harsh working environment, strong magnetic field, positioning accuracy requirements;

Laser guided forklift AGV parameters

product name   Laser guided forklift AGV
  Product number   CCJPT10V1
  product code   8692000000000
  Product Size   L2200 * W802 * H710 (mm) (can be customized)
  Guidance   Laser guidance
  Walking direction   Forward and backward, left and right turn, bifurcation
  wireless network   WiFi network · RF network
  Drive mode   Steering wheel control
  Drive power supply   DC24V
  Carrying capacity   1000kg (can be customized)
  Body models   Forklift type
  Walking speed   35 m / min
  Turning radius   1705-2075mm (according to the shape of the forklift)
  Gradeability   5-7 degrees
  Navigation accuracy   ± 10 mm
  Stop Accuracy   ± 10 mm
  Way of working   24 hours
  Charging method   Manual charging · Automatic charging
  Safety sensing range   ≤1m, adjustable, the emergency braking distance is less than 20mm (adjustable)
  Alarm form   Audible alarm
  Battery   Lead-acid battery · Lithium battery
  Security   Front obstacle detection sensor + mechanical anti-collision mechanism double protection + emergency stop button
  Design life   > 10 years
