Unidirectional roller AGV
DANBACH ROBOT


Introduction of AGV of Unidirectional roller AGV:

The Unidirectional roller AGV also called one-way power roller AGV, on the AGV tower loading track, can be docked with the drum line to receive goods or send goods, suitable for the automatic assembly line cargo transfer, to achieve unmanned operation.

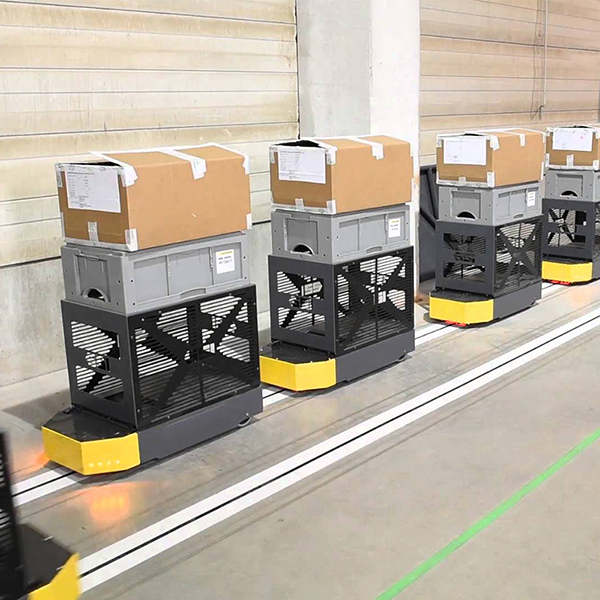

unidirectional roller agv

Unidirectional roller AGV parameters:

Body models Unidirectional roller AGV
physical dimension L800 * W500 * H500 (mm)
control method PLC / AGV motion control chip (optional)
Navigation mode Magnetic Strip Guidance / Photoelectric Guidance / Laser Guidance (optional)
Walking direction Forward and backward, left and right turn, bifurcation
Communication function Wireless LAN (optional)
Drive mode Differential drive
Drive power supply DC24V, DC48V
Drive the lift mode Manual lift / electric lift
Load capacity 100,300,500,1000 KG (can be customized)
Travel speed 30-45m / min Speed ​​(or custom)
Turning radius The minimum can be up to 500mm (route laying radius)
Navigation accuracy ± 10 mm
Way of working 24 hours
Gradeability 3-5 degrees
Stop Accuracy ± 10 mm
Charging method Manual charging (optional automatic charging)
Battery Maintenance-free rechargeable batteries, the number of continuous discharge> 300 times
Safety sensing range ≤ 3m, adjustable, emergency braking distance of less than 20mm
Human - computer interaction Using touch-screen human-computer interaction, you can easily set the parameters, set the site and alarm.
Use of the environment Indoor temperature: 0 ~ 40 degrees, relative humidity: 40% to 80%
Security Side obstacle detection sensor + mechanical anti-collision mechanism double protection
Design life > 10 years


Roller conveyor unit load AGV Standard Features:

  • Off-the-shelf components

  • Graphical touchscreen

  • Manual and automatic vehicle dispatch

  • SICK laser bumper safety system

  • Electric steer/drive assembly

  • Industrial lead-acid batteries

  • PC on board running Windows®

  • Heavy-duty welded steel construction with powder coat finish

  • RF Ethernet (802.11)

  • Handshake sensors

Towing AGV car Applications:

Automobile plants, auto parts plants, garment factories, paper mills, electronics factories, etc.
