Danbach warehouse Two-dimensional code navigation AGV introduction
DANBACH ROBOT

---

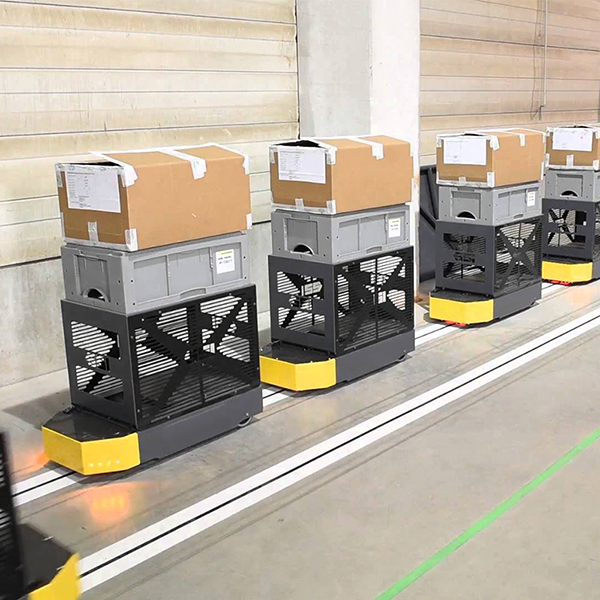

Danbach Two-dimensional code navigation AGV is a new intelligent warehouse handling robot developed by DBH, which can reach speed of 80 m / min. The logistics warehousing robot adopts inertial two-dimensional code navigation, which is not only small and flexible, but also has high precision and high speed. It has the ability to automatically detect obstacles, freely plan routes, maintain posture and other powerful functions. This model of AGV can transfer the shelves where the goods are located from the huge warehouse storage area to the employee processing area according to the order, greatly improving the processing efficiency. Cooperate with Danbach, you can increase your warehouse handling capacity by nearly 50%.
The technical parameters of the Two-dimensional code navigation AGV are as follows:

AGV Body Weight	150KG
Carrying Capacity	500KG
Dimension	912*712*320mm
Max. Moving Speed	1m/s
Guidance Type	Visual Two-dimension
Obstacle Avoidance Method	Laser Radar
Communication Method	WIFI
Control/Stop Precision	＜10mm
Step/Clearance	＜10mm

Danbach robot has a professional R & D team, masters the core technology, and has won many national patents. The AGV trolleys and storage robots produced by the company are convenient for operation and maintenance of the workshop, and the driving is stable. It has been widely used in the handling of goods in the factory floor.
