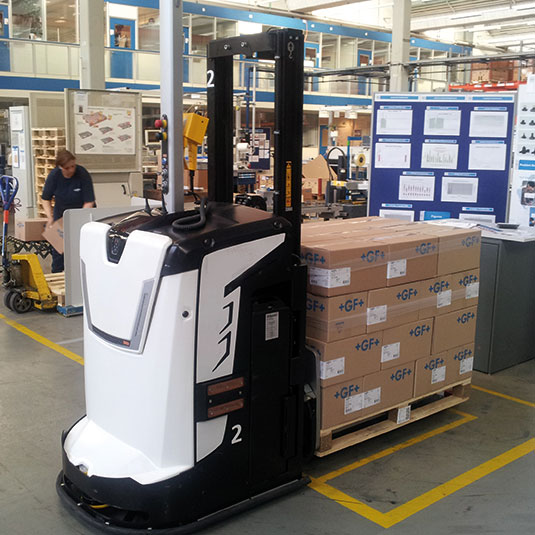

Pallet forklift AGV with fully autonomous movement
DANBACH ROBOT

---

A fully autonomously moving, operating pallet AGV. It relies on WIFI communication capabilities to automatically navigate the natural structure of the natural environment without the need for additional infrastructure. 1) Strong endurance
The battery management system provides a charging time of only 10 minutes, after which the Danbach forklift agv can run for 8 hours.
2) Human-machine safety and harmonious operation
The Danbach forklift agv is an unmanned, compact AGV for internal pallet transport. It can safely work with the staff in the warehouse without mutual interference or mutual influence.
3) Independent programming, flexible operation
The Danbach forklift agv can be programmed independently and the built-in line process is easy to adjust. Simply manually modify or add work lines with intelligent software, it can be automated to run in the warehouse.
4) Accurate positioning, no infrastructure navigation
Danbach forklift agv uses structures and contours as a reference for localization in its working environment. There are no sensing wires, magnets or reflectors. A reflector can be used to increase the positioning from +/- 1 cm to +/- 1 mm.
Danbach forklift agv technical specifications
Model: DBH-LGF0-16
Dimensions: L2000*W940*H2100mm (can be customized)
Carrier type: pallet handling
Load: 1600-3000KG (can be customized)
Safety: laser scanner with integrated safety zone
Navigation: Free programming according to the structure and contours in the work environment
Navigation method: laser / magnetic navigation
Communication method: WiFi
Operating speed: 90m/min
Navigation accuracy: ±10mm
Climbing ability: ≤8%
Battery capacity: 8 hours standard, customizable large capacity battery
Safety sensing range: ≤3m adjustable, emergency braking distance is less than 20mm
